Heat Shrinkable Medium Voltage Insulation Tape upto 36 kV

Features:

  • Reduces bus bar clearance requirements
  • Protects against accidental flashover
  • Continuous operation temperature: -40 C to 125 C
  • Halogen free
  • Shrink Temperature: 120 C
  • Anti-track

Anti-Track adhesive coated Heat Shrink Tape specially designed for insulation & protecting edium voltage bus bar upto 36 kV.

Enquire Now
DOWNLOAD
BROCHURE

Specifications:

Heat Shrink Medium Voltage Bus Bar Tape

(for Service upto 36 kV over bolted Bus Bar)

Installation Instruction

A 2/3 overlap is recommended
One layer application required upto 17 kV
Two layer application required upto 25 kV
Three layer application required upto 36 kVa

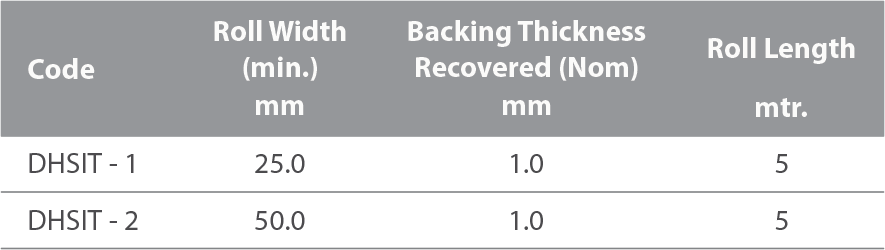

Dimensions- Available in width of 25 mm & 50 mm

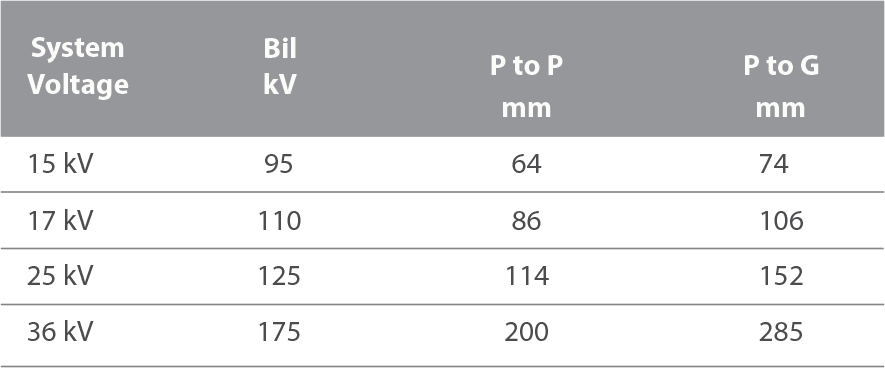

Clearance with Insulation

(for Service upto 36 kV over bolted Bus Bar)

P to P

Phase to Phase orientation
Spacing based on metal to metal

P to G

Phase to ground orientation
Dimensions prior to insulation
Space based on insulation wall thickness per application range of above tables.

Technical Data for Heat Shrink Medium Voltage Insulation Tape
