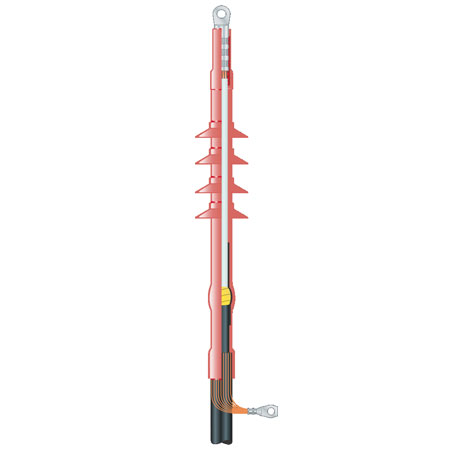

DENSONS HEAT SHRINKABLE TERMINATIONS UPTO 36 kV For Single Core XLPE/EPR Insulated Cable

Enquire Now

Features

All key inputs are produced in-house.
Continuous operation temperature-55oC to 120oC.
Corrosion resistant and unlimited shelf life.
In compliance with IEC-60502-4 / IS-13573.
Electrolytic grade connectors.

Terminations upto 36 kV For Single Core XLPE/EPR Insulated

In conformance with IEEE-48,
VDE 0278 & IS: 13573

Specifications:

Test Item of Heat Shrinkable Termination as per IEC-60502-4 / IS:13573

Testing Items U o/U	6.35/11 kV	12.7/22 kV	19/33 kV
A.C. withstand test	29kV, 5min, no flashover	58kV, 5min, no flashover	86kV, 5min, no flashover
Partial discharge test	11kV < 10pc (Max.)	22kV < 10pc (Max.)	33kV < 10pc (Max.)
Thermal Cycles (63 cycles)	under 95-100o C 16kV	under 95-100o C 32kV	under 95-100o C 48kV
Impulse voltage test	75kV no flashover	125kV no flashover	170kV no flashover
A.C. with stand test	16kV, 15 min, no flashover	32kV, 15 min, no flashover	48kV, 15 min, no flashover
Humidity test (Indoor)	No flashover, tracking erosion or mechanical damage occured at 300hrs, 8kV	No flashover, tracking erosion or mechanical damage occured at 300hrs, 16kV	No flashover, tracking erosion or mechanical damage occured at 300hrs, 24kV
Salt Fog test (Outdoor)	No flashover, tracking erosion or mechanical damage occured at 1000hrs, 8kV no flashover, tracking	No flashover, tracking erosion or mechanical damage occured at 1000hrs, 16kV no flashover, tracking	No flashover, tracking erosion or mechanical damage occured at 1000hrs, 24kV no flashover, tracking

Order Reference:

For 11 kV Indoor Terminations (for XLPE Cable)

11 Kv 1 Core Indoor Terminations	Cable Size (mm2)	Kit Code
	1 x 16 - 50	XSES - 11
	1 x 70 - 120	XSES - 12
	1 x 150 - 300	XSES - 13
	1 x 400 - 630	XSES - 14
	1 x 800 - 1000	XSES - 15

For 11 kV Outdoor Terminations (for XLPE Cable)

11 Kv 1 Core Outdoor Terminations	Cable Size (mm2)	Kit Code
	1 x 25 - 50	XSOS - 11
	1 x 70 - 120	XSOS - 12
	1 x 150 - 300	XSOS - 13
	1 x 400 - 630	XSOS - 14
	1 x 800 - 1000	XSOS - 15

For 22 kV Indoor Terminations (for XLPE Cable)

22 Kv 1 Core Indoor Terminations	Cable Size (mm2)	Kit Code
	1 x 16 - 50	XSES - 21
	1 x 70 - 150	XSES - 22
	1 x 185 - 300	XSES - 23
	1 x 400 - 630	XSES - 24
	1 x 800 - 1000	XSES - 25

For 22 kV Outdoor Terminations (for XLPE Cable)

22 Kv 1 Core Outdoor Terminations	Cable Size (mm2)	Kit Code
	1 x 16 - 50	XSOS - 21
	1 x 70 - 150	XSOS - 22
	1 x 185 - 300	XSOS - 23
	1 x 400 - 630	XSOS - 24
	1 x 800 - 1000	XSOS - 25

For 33 kV Indoor Terminations (for XLPE Cable)

33 Kv 1 Core Indoor Terminations	Cable Size (mm2)	Kit Code
	1 x 25 - 50	XSES - 31
	1 x 70 - 185	XSES - 32
	1 x 240 - 400	XSES - 33
	1 x 500 - 800	XSES - 34
	1 x 1000	XSES - 35

For 33 kV Outdoor Terminations (for XLPE Cable)

33 Kv 1 Core Outdoor Terminations	Cable Size (mm2)	Kit Code
	1 x 25 - 50	XSOS - 31
	1 x 70 - 185	XSOS - 32
	1 x 240 - 400	XSOS - 33
	1 x 500 - 800	XSOS - 34
	1 x 1000	XSOS - 35
